12 Inch Or 13.4 Inch Digit Led Vms Board Radar Speed Limit Signs P10 Pixel Pitch

Place of Origin : China

Price : Negotiable

Digit height : 12 inch or 13.4 inch

Digit Color : Red & Green or yellow

Cabinet Material : Cold Rolled steel cabinet

Waterproof : IP65 protected for outdoor use

Communication : RF remote

Pixel Pitch : P10

lamp package : DIP

Contact Now

12 inch or 13.4 inch Digit Height Led VMS Radar Speed Limit Signs with P10 Pixel Pitch

Factory Direct Solar Power Radar Speed Limit Sign for Traffic Safety

Product Introduction:

12 Inch Or 13.4 Inch Digit Led Vms Board Radar Speed Limit Signs P10 Pixel Pitch

Specifications:

Model C	Size 1	Size 2
Cabinet Size:	W:750mm * H:890mm * D:200mm	W:802mm * H:960mm * D:200mm
the Specifications of the "188" (see as below):
Height of the digit "188"	12"	13.4"
Formats of the display digits	"188" (3 digits)
Displaying Speed Range	1 km/h - 199 km/h
Color of the digits "188"	yellow (standard) or Red/Green (custom)
"188" Power Consumption:	Max 15W ( Average <10W)
Brightness:	about 5000 cd/m²
Working Voltage:	DC 12V
Visual Distance:	150 meters
Communication:	RF remote
the Specificaitons of the matrix (see as below:) (Variable message sign, it is editable)
Led Lamp:	DIP P10, yellow, with viewing angle 70°
Brightness:	about 2000 cd/m²
input Voltage	5V
Communication:	TCP/IP or Serial port(RS232,RS254 etc.)
the specifications of the Cabinet (see as below:)
Cabinet Material:	Cold Rolled Steel Cabinet
Waterproof Level:	IP65 protected for outdoor use
Operating Temperature	minus 40℃ - 70℃
Maintenance	Back access Cabinet (standard) or Front Access (custom)
Lift time:	over 10 years

Application: along urban streets / Highway / near the school / Hospitial / Factory zone.

Model A and B can only display speeds. Model C can display both speed and variable massage.

All the three speed limit signs can be powered by DC 12V solar power or AC 220V from municipal power grid.

Maintenance can be back access or front access. it is negotiable and designed as per how and where the sign will be installed? if being fixed on a pole, you better choose front access, to help doing maintenance easily after installation. if you have some structure on a pole to hold the sign at four corners, back access is still a choice. we usually make back access cabinet without your special requirement.

Specifications:

Model A	Size 1	Size 2
Height of the digit "188"	12"	13.4"
Cabinet Size:	W:690mm H:1284mmD:200mm	W:810mmH:1404mmD:200mm
Formats of the display digits	"188" (3 digits)
Displaying Speed Range	1 km/h - 199 km/h
Color of the digits "188"	Red & Green ( display red if over speed)
Brightness:	about 5000 cd/m²
Working Voltage:	DC 12V (solar power) or AC 220V
Power Consumption:	Max 15W (Average <10W)
Visual Distance:	150 meters
Led Lamp:	DIP ∅5
Viewing Angle:	30 degree
Communication:	RF remote
Cabinet Material:	Cold Rolled Steel Cabinet
Waterproof Level:	IP65 protected for outdoor use
Operating Temperature	minus 40℃ - 70℃
Maintenance	back access
Lift time:	over 10 years

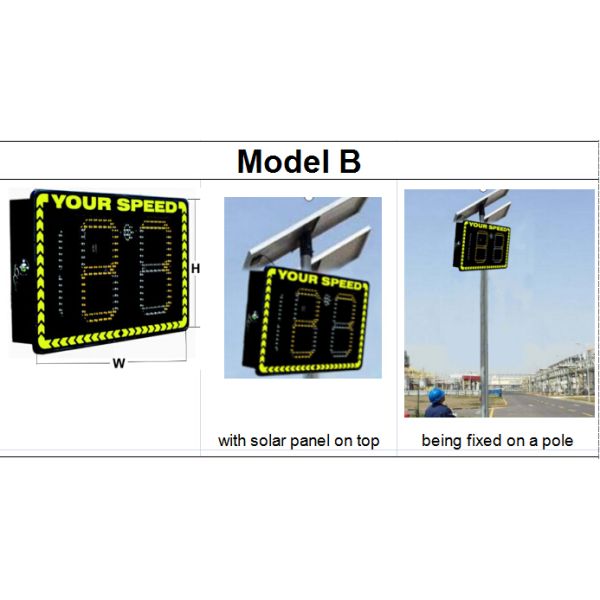

Specifications:

Model B	Size 1	Size 2
Height of the digit "188"	12"	13.4"
Cabinet Size:	W:701mmH:492mmD:200mm	W:830mmH:530mmD:200mm
Formats of the display digits	"188" (3 digits)
Displaying Speed Range	1 km/h - 199 km/h
Color of the digits "188"	Red & Green ( display red if over speed)
Brightness:	about 5000 cd/m²
Working Voltage:	DC 12V (solar power) or AC 220V
Power Consumption:	Max 15W (Average <10W)
Visual Distance:	150 meters
Led Lamp:	DIP ∅5
Viewing Angle:	30 degree
Communication:	RF remote
Cabinet Material:	Cold Rolled Steel Cabinet
Waterproof Level:	IP65 protected for outdoor use
Operating Temperature	minus 40℃ - 70℃
Maintenance	back access
Lift time:	over 10 years

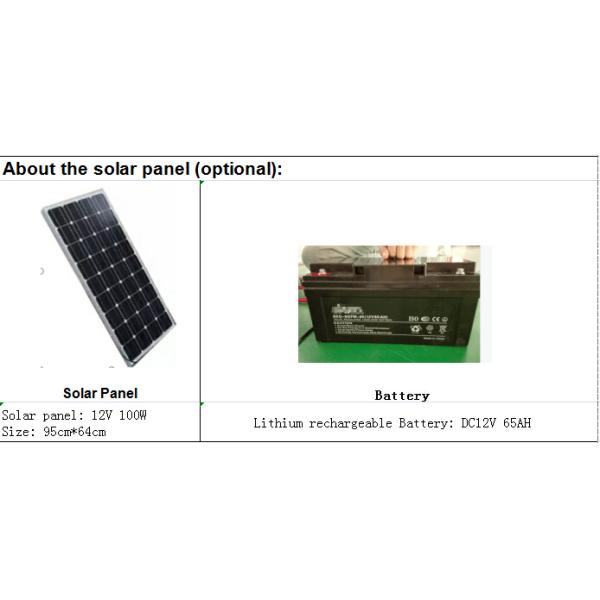

Weight:25KG (including solar panel + rechargeable battery)

note: we can also provide only the speed limit sign(powered by DC 12V), if you can buy the solar panel and battery at your local.

Company Introduction:

RAQ:

1. Can we make any size of led display?
Please show us the size you want, according the led module sizes and cabinet sizes we have at present, we can provide you the displays extremely close to the size you asked. The best aspect ratio of LED display are W16:H9 or W4:H3

2,What if the displays is damaged during the shippment?
We are pleased to offer our convenient warranty policy.

3,How to install led display?
We will provide drawing of steel structure or hanging truss,then you can install led display very easy.

4,How to order LED display?
Please tell me where the displays should be placed? indoor or outdoor? the size you want and the application.

5,How to ship?
Usually shipped by air or by sea.

6,How to payment?
You can transfer payment by TT, West union or L/C

7. Can you provide the finished solutions for exhibitions or do custom projects?

Yes, we has 10 years experiences in Led displays area and can do custom design as you ask.
